SAS SEALTRON CATALOG
O-Rings SAS SEALTRON Conductive Elastomers can be made in virtually any O-Ring size. The following pages list standard sizes and our part numbers. Custom sizes available upon request.

P/N

A (C/S) In inches

B (ID) In inches

M83528 PN

1xxx-0071

.030

.442

005X001

1xxx-0072

.030

.577

005X002

1xxx-0073

.030

.692

005X003

1xxx-0074

.030

.817

005X004

1xxx-0075

.039

.425

005X005

1xxx-0076

.048

.295

005X006

1xxx-0077

.050

.533

005X007

1xxx-0078

.051

.446

005X008

1xxx-0079

.057

.415

005X009

1xxx-0080

.063

.541

005X010

1xxx-0081

.063

.648

005X011

1xxx-0082

.068

.847

005X012

1xxx-0083

.068

1.182

005X013

1xxx-0084

.068

3.165

005X014

1xxx-0007

.070

.145

002X007

1xxx-0011

.070

.301

002X011

1xxx-0012

.070

.364

002X012

1xxx-0013

.070

.426

002X013

1xxx-0014

.070

.489

002X014

1xxx-0085

.070

.495

005X015

1xxx-0015

.070

.551

002X015

1xxx-0086

.070

.610

005X016

1xxx-0087

.070

.635

005X017

1xxx-0088

.070

.667

005X018

1xxx-0017

.070

.676

002X017

1xxx-0018

.070

.739

002X018

1xxx-0019

.070

.801

002X019

1xxx-0089

.070

.860

005X019

1xxx-0020

.070

.864

002X020

1xxx-0021

.070

.926

002X021

1xxx-0022

.070

.989

002X022

1xxx-0024

.070

1.114

002X024

Waveguide O-Ring Sizes

P/N

A (C/S) In inches

B (ID) In inches

Waveguide Size

1xxx-0476

.082

.410

WR22, WR28

1xxx-0092

.080

.585

WR34, WR42

1xxx-0197

.150

.731

WR51

1xxx-0021

.070

.926

WR62

1xxx-0213

.139

.921

WR62, WR67

1xxx-0093

.099

1.122

WR75

1xxx-0094

.095

1.340

WR90

1xxx-0127

.103

1.424

WR102

1xxx-0191

.105

1.550

WR112

1xxx-0194

.139

2.011

WR137

1xxx-0192

.115

2.683

WR187

1xxx-0015

.070
.551
PBR260, WR34

1xxx-1001

.083
.588
PBR220, WR42

1xxx-0119

.103
.924
PBR140, WR62

1xxx-0122

.103
1.112
PBR120, WR75

1xxx-1002

.083
1.340
PBR100, WR90

1xxx-0129

.103
1.549
PBR84, WR112

P/N

A (C/S) In inches

B (ID) In inches

M83528 PN

1xxx-0090

.070

1.230

005X020

1xxx-0026

.070

1.239

002X026

1xxx-0028

.070

1.364

002X028

1xxx-0114

.103

.612

002X114

1xxx-0187

.103

.676

002X115

1xxx-0117

.103

.799

002X117

1xxx-0189

.103

1.040

005X021

1xxx-0126

.103

1.362

002X126

1xxx-0128

.103

1.487

002X128

1xxx-0130

.103

1.612

005X022

1xxx-0132

.103

1.737

002X132

1xxx-0188

.103

1.790

005X023

1xxx-0134

.103

1.862

002X134

1xxx-0142

.103

2.362

002X142

1xxx-0145

.103

2.550

002X145

1xxx-0155

.103

3.987

002X155

1xxx-0192

.115

2.683

013X029

1xxx-0194

.139

2.011

013X022

P/N

A (C/S) In inches

B (ID) In inches

MS29513

MS9021

1xxx-0007

.070

.145

007

1xxx-0011

.070

.301

011

1xxx-0012

.070

.364

012

1xxx-0013

.070

.426

013

1xxx-0014

.070

.489

014

1xxx-0015

.070

.551

015

1xxx-0017

.070

.676

017

1xxx-0018

.070

.739

108

1xxx-0019

.070

.801

019

1xxx-0020

.070

.864

020

1xxx-0021

.070

.926

021

1xxx-0022

.070

.989

022

1xxx-0024

.070

1.114

024

1xxx-0026

.070

1.239

026

1xxx-0028

.070

1.364

028

1xxx-0030

.070

1.614

030

1xxx-0032

.070

1.864

032

1xxx-0043

.070

3.489

043

1xxx-0128

.103

1.487

128

1xxx-0130

.103

1.612

130

1xxx-0132

.103

1.737

132

1xxx-0142

.103

2.362

142

SAS SEALTRON O-Ring part numbers are created by replacing the first 4 digits in the P/N (labeled 1xxx) with the material type.

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0071

.030

.442

1xxx-0072

.030

.577

1xxx-0073

.030

.692

1xxx-0074

.030

.817

1xxx-0075

.039

.425

1xxx-0001

.040

.029

1xxx-0076

.048

.295

1xxx-0002

.050

.042

1xxx-0077

.050

.533

1xxx-0078

.051

.446

1xxx-0901

.056

.185

1xxx-0079

.057

.415

1xxx-0003

.060

.056

1xxx-0080

.063

.541

1xxx-0081

.063

.648

1xxx-0902

.064

.239

1xxx-0903

.064

.301

1xxx-0082

.068

.847

1xxx-0083

.068

1.182

1xxx-0084

.068

3.165

1xxx-0004

.070

.070

1xxx-0005

.070

.101

1xxx-0006

.070

.114

1xxx-0007

.070

.145

1xxx-0008

.070

.176

1xxx-0009

.070

.208

1xxx-0010

.070

.239

1xxx-0011

.070

.301

1xxx-0012

.070

.364

1xxx-0013

.070

.426

1xxx-0014

.070

.489

1xxx-0085

.070

.495

1xxx-0015

.070

.551

1xxx-0086

.070

.610

1xxx-0016

.070

.614

1xxx-0087

.070

.635

1xxx-0088

.070

.667

1xxx-0017

.070

.676

1xxx-0051

.070

.735

1xxx-0018

.070

.739

1xxx-0019

.070

.801

1xxx-0089

.070

.860

1xxx-0020

.070

.864

1xxx-0021

.070

.926

1xxx-0022

.070

.989

1xxx-0052

.070

1.046

1xxx-0023

.070

1.051

1xxx-0053

.070

1.110

1xxx-0024

.070

1.114

1xxx-0025

.070

1.176

1xxx-0090

.070

1.230

1xxx-0026

.070

1.239

1xxx-0054

.070

1.296

1xxx-0027

.070

1.301

1xxx-0028

.070

1.364

1xxx-0055

.070

1.485

1xxx-0029

.070

1.489

1xxx-0056

.070

1.609

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0030

.070

1.614

1xxx-0057

.070

1.674

1xxx-0031

.070

1.739

1xxx-0032

.070

1.864

1xxx-0059

.070

1.980

1xxx-0033

.070

1.989

1xxx-0034

.070

2.114

1xxx-0035

.070

2.239

1xxx-0036

.070

2.364

1xxx-0037

.070

2.489

1xxx-0038

.070

2.614

1xxx-0039

.070

2.739

1xxx-0040

.070

2.864

1xxx-0041

.070

2.989

1xxx-0060

.070

3.009

1xxx-0070

.070

3.170

1xxx-0042

.070

3.239

1xxx-0043

.070

3.489

1xxx-0044

.070

3.739

1xxx-0045

.070

3.989

1xxx-0046

.070

4.239

1xxx-0047

.070

4.489

1xxx-0048

.070

4.739

1xxx-0049

.070

4.989

1xxx-0050

.070

5.239

1xxx-0904

.072

.351

1xxx-0905

.072

.414

1xxx-0095

.076

.656

1xxx-0096

.076

.779

1xxx-0906

.078

.468

1xxx-0092

.080

.585

1xxx-0907

.082

.530

1xxx-1001

.083

.588

1xxx-1002

.083

1.340

1xxx-0097

.084

.852

1xxx-0098

.084

2.678

1xxx-0908

.087

.644

1xxx-0099

.087

1.250

1xxx-0100

.087

2.360

1xxx-0101

.094

.750

1xxx-0179

.095

.897

1xxx-0180

.095

1.074

1xxx-0094

.095

1.340

1xxx-0181

.097

.706

1xxx-0182

.097

.755

1xxx-0093

.099

1.122

1xxx-0183

.100

1.005

1xxx-0184

.101

2.805

1xxx-0185

.101

3.153

1xxx-0186

.101

3.613

1xxx-0102

.103

.049

1xxx-0103

.103

.081

1xxx-0104

.103

.112

1xxx-0105

.103

.143

1xxx-0106

.103

.174

1xxx-0107

.103

.206

1xxx-0108

.103

.237

1xxx-0109

.103

.299

1xxx-0110

.103

.362

1xxx-0111

.103

.424

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0112

.103

.487

1xxx-0113

.103

.549

1xxx-0114

.103

.612

1xxx-0115

.103

.674

1xxx-0187

.103

.676

1xxx-0116

.103

.737

1xxx-0117

.103

.799

1xxx-0118

.103

.862

1xxx-0119

.103

.924

1xxx-0120

.103

.987

1xxx-0189

.103

1.040

1xxx-0121

.103

1.049

1xxx-0122

.103

1.112

1xxx-0123

.103

1.174

1xxx-0124

.103

1.237

1xxx-0190

.103

1.240

1xxx-0125

.103

1.299

1xxx-0126

.103

1.362

1xxx-0127

.103

1.424

1xxx-0128

.103

1.487

1xxx-0129

.103

1.549

1xxx-0130

.103

1.612

1xxx-0131

.103

.167

1xxx-0132

.103

1.737

1xxx-0188

.103

1.790

1xxx-0133

.103

1.799

1xxx-0134

.103

1.862

1xxx-0135

.103

1.925

1xxx-0136

.103

1.987

1xxx-0137

.103

2.050

1xxx-0138

.103

2.112

1xxx-0139

.103

2.175

1xxx-0140

.103

2.237

1xxx-0141

.103

2.300

1xxx-0142

.103

2.362

1xxx-0143

.103

2.425

1xxx-0144

.103

2.487

1xxx-0145

.103

2.550

1xxx-0146

.103

2.612

1xxx-0147

.103

2.675

1xxx-0148

.103

2.737

1xxx-0149

.103

2.800

1xxx-0150

.103

2.862

1xxx-0151

.103

2.987

1xxx-0152

.103

3.237

1xxx-0153

.103

3.487

1xxx-0154

.103

3.737

1xxx-0155

.103

3.987

1xxx-0156

.103

4.237

1xxx-0157

.103

4.487

1xxx-0158

.103

4.737

1xxx-0159

.103

4.987

1xxx-0160

.103

5.237

1xxx-0161

.103

5.487

1xxx-0162

.103

5.737

1xxx-0163

.103

5.987

1xxx-0164

.103

6.237

1xxx-0165

.103

6.487

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0166

.103

6.737

1xxx-0167

.103

6.987

1xxx-0168

.103

7.237

1xxx-0169

.103

7.487

1xxx-0191

.105

.155

1xxx-0192

.115

2.683

1xxx-0193

.115

2.876

1xxx-0911

.116

.863

1xxx-0912

.116

.924

1xxx-0913

.116

.986

1xxx-0914

.116

1.047

1xxx-0916

.116

1.171

1xxx-0918

.116

1.355

1xxx-0920

.118

1.475

1xxx-0924

.118

1.720

1xxx-0928

.118

2.090

1xxx-0932

.118

2.337

1xxx-0201

.139

.171

1xxx-0202

.139

.234

1xxx-0203

.139

.296

1xxx-0204

.139

.359

1xxx-0205

.139

.421

1xxx-0206

.139

.484

1xxx-0207

.139

.546

1xxx-0208

.139

.609

1xxx-0209

.139

.671

1xxx-0210

.139

.734

1xxx-0211

.139

.796

1xxx-0212

.139

.859

1xxx-0213

.139

.921

1xxx-0214

.139

.984

1xxx-0215

.139

1.046

1xxx-0216

.139

1.109

1xxx-0217

.139

1.171

1xxx-0218

.139

1.234

1xxx-0219

.139

1.296

1xxx-0220

.139

1.359

1xxx-0221

.139

1.421

1xxx-0222

.139

1.484

1xxx-0223

.139

1.609

1xxx-0224

.139

1.734

1xxx-0225

.139

1.859

1xxx-0226

.139

1.984

1xxx-0194

.139

2.011

1xxx-0227

.139

2.109

1xxx-0228

.139

2.234

1xxx-0229

.139

2.359

1xxx-0230

.139

2.484

1xxx-0231

.139

2.609

1xxx-0232

.139

2.734

1xxx-0233

.139

2.859

1xxx-0234

.139

2.984

1xxx-0235

.139

3.109

1xxx-0236

.139

3.234

1xxx-0237

.139

3.359

1xxx-0238

.139

3.484

1xxx-0239

.139

3.609

1xxx-0240

.139

3.734

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0241

.139

3.859

1xxx-0242

.139

3.984

1xxx-0243

.139

4.109

1xxx-0244

.139

4.234

1xxx-0245

.139

4.359

1xxx-0246

.139

4.484

1xxx-0247

.139

4.609

1xxx-0248

.139

4.734

1xxx-0249

.139

4.859

1xxx-0250

.139

4.984

1xxx-0251

.139

5.109

1xxx-0252

.139

5.234

1xxx-0253

.139

5.359

1xxx-0254

.139

5.484

1xxx-0255

.139

5.609

1xxx-0256

.139

5.734

1xxx-0257

.139

5.859

1xxx-0258

.139

5.984

1xxx-0259

.139

6.234

1xxx-0260

.139

6.484

1xxx-0261

.139

6.734

1xxx-0262

.139

6.984

1xxx-0263

.139

7.234

1xxx-0264

.139

7.484

1xxx-0265

.139

7.734

1xxx-0266

.139

7.984

1xxx-0267

.139

8.234

1xxx-0268

.139

8.484

1xxx-0269

.139

8.734

1xxx-0270

.139

8.984

1xxx-0271

.139

9.234

1xxx-0272

.139

9.484

1xxx-0273

.139

9.734

1xxx-0274

.139

9.984

1xxx-0275

.139

10.484

1xxx-0276

.139

10.984

1xxx-0277

.139

11.484

1xxx-0278

.139

11.984

1xxx-0279

.139

12.984

1xxx-0280

.139

13.984

1xxx-0281

.139

14.984

1xxx-0282

.139

15.955

1xxx-0283

.139

16.955

1xxx-0284

.139

17.955

1xxx-0195

.147

2.265

1xxx-0196

.147

3.690

1xxx-0197

.150

.731

1xxx-0198

.188

.673

1xxx-0309

.210

.412

1xxx-0310

.210

.475

1xxx-0311

.210

.537

1xxx-0312

.210

.600

1xxx-0313

.210

.662

1xxx-0314

.210

.725

1xxx-0315

.210

.787

1xxx-0316

.210

.850

1xxx-0317

.210

.912

1xxx-0318

.210

.975

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0319

.210

1.034

1xxx-0320

.210

1.100

1xxx-0321

.210

1.162

1xxx-0322

.210

1.225

1xxx-0323

.210

1.287

1xxx-0324

.210

1.350

1xxx-0325

.210

1.475

1xxx-0326

.210

1.600

1xxx-0327

.210

1.725

1xxx-0328

.210

.185

1xxx-0329

.210

.198

1xxx-0330

.210

2.100

1xxx-0331

.210

2.225

1xxx-0332

.210

2.350

1xxx-0333

.210

2.475

1xxx-0334

.210

2.600

1xxx-0335

.210

2.725

1xxx-0336

.210

2.850

1xxx-0337

.210

2.975

1xxx-0338

.210

3.100

1xxx-0339

.210

3.225

1xxx-0340

.210

3.350

1xxx-0341

.210

3.475

1xxx-0342

.210

3.600

1xxx-0343

.210

3.725

1xxx-0344

.210

3.850

1xxx-0345

.210

3.975

1xxx-0346

.210

4.100

1xxx-0347

.210

4.225

1xxx-0348

.210

4.350

1xxx-0349

.210

4.475

1xxx-0350

.210

4.600

1xxx-0351

.210

4.725

1xxx-0352

.210

4.850

1xxx-0353

.210

4.975

1xxx-0354

.210

5.100

1xxx-0355

.210

5.225

1xxx-0356

.210

5.350

1xxx-0357

.210

5.475

1xxx-0358

.210

5.600

1xxx-0359

.210

5.725

1xxx-0360

.210

5.850

1xxx-0361

.210

5.975

1xxx-0362

.210

6.225

1xxx-0363

.210

6.475

1xxx-0364

.210

6.725

1xxx-0365

.210

6.975

1xxx-0366

.210

7.225

1xxx-0367

.210

7.475

1xxx-0368

.210

7.725

1xxx-0369

.210

7.975

1xxx-0370

.210

8.225

1xxx-0371

.210

8.475

1xxx-0372

.210

8.725

1xxx-0373

.210

8.975

1xxx-0374

.210

9.225

1xxx-0375

.210

9.475

1xxx-0376

.210

9.725

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0377

.210

9.925

1xxx-0378

.210

10.475

1xxx-0379

.210

10.975

1xxx-0380

.210

11.475

1xxx-0381

.210

11.975

1xxx-0382

.210

12.975

1xxx-0383

.210

13.975

1xxx-0384

.210

14.975

1xxx-0385

.210

15.955

1xxx-0386

.210

16.955

1xxx-0387

.210

17.955

1xxx-0388

.210

18.955

1xxx-0389

.210

19.955

1xxx-0390

.210

2.955

1xxx-0199

.243

3.409

1xxx-0425

.275

4.475

1xxx-0426

.275

4.600

1xxx-0427

.275

4.725

1xxx-0428

.275

4.850

1xxx-0429

.275

4.975

1xxx-0430

.275

5.100

1xxx-0431

.275

5.225

1xxx-0432

.275

5.350

1xxx-0433

.275

5.475

1xxx-0434

.275

5.600

1xxx-0435

.275

5.725

1xxx-0436

.275

5.850

1xxx-0437

.275

5.975

1xxx-0438

.275

6.225

1xxx-0439

.275

6.475

1xxx-0440

.275

6.725

1xxx-0441

.275

6.975

1xxx-0442

.275

7.225

1xxx-0443

.275

7.475

1xxx-0444

.275

7.725

1xxx-0445

.275

7.975

1xxx-0446

.275

8.475

1xxx-0447

.275

8.975

1xxx-0448

.275

9.475

1xxx-0449

.275

9.975

1xxx-0450

.275

10.475

1xxx-0451

.275

10.975

1xxx-0452

.275

11.475

1xxx-0453

.275

11.975

1xxx-0454

.275

12.475

1xxx-0455

.275

12.975

1xxx-0456

.275

13.475

1xxx-0457

.275

13.975

1xxx-0458

.275

14.475

1xxx-0459

.275

14.975

1xxx-0460

.275

15.475

1xxx-0461

.275

15.955

1xxx-0462

.275

16.455

1xxx-0463

.275

16.955

1xxx-0464

.275

17.455

1xxx-0465

.275

17.955

1xxx-0466

.275

18.455

1xxx-0467

.275

18.955

P/N

A (C/S) In inches

B (ID) In inches

1xxx-0468

.275

19.455

1xxx-0469

.275

19.955

1xxx-0470

.275

2.955

1xxx-0471

.275

21.955

1xxx-0472

.275

22.940

1xxx-0473

.275

23.940

1xxx-0474

.275

24.940

1xxx-0475

.275

25.940

1xxx-0200

.394

3.464

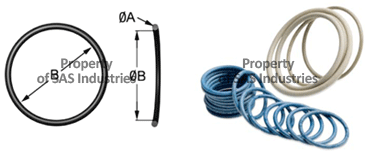

This is just a partial listing of the standard O-Rings that we are capable of making. If you do not see a certain size that will work for your application please contact a representative at SAS and we will accommodate whatever sizing you may require.
D-Rings

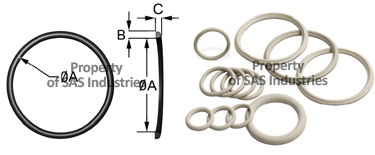

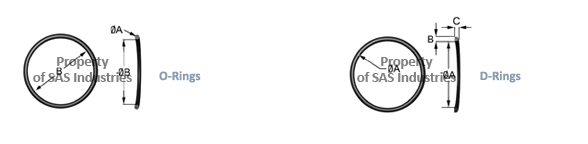

SAS SEALTRON Conductive Elastomers can be made in virtually any D-Ring size. The following pages list standard sizes and our part numbers. SAS SEALTRON D-Ring part numbers are created by replacing the first 4 digits in the P/N (labeled 1xxx) with the material type.

P/N

A In inches

B In inches

C In inches

M83528/013 PN

Waveguide D-Ring Size

1xxx-3001

.151

.039

.061

–

–

1xxx-3002

.180

.025

.061

–

–

1xxx-3003

.230

.034

.073

–

–

1xxx-3004

.410

.082

.056

13/002

WR22, WR28

1xxx-3005

.565

.059

.066

–

–

1xxx-3006

.585

.080

.049

–

WR34, WR42

1xxx-3007

.587

.078

.048

13/004

–

1xxx-3008

.592

.130

.101

–

–

1xxx-3009

.731

.150

.110

–

WR51

1xxx-3010

.809

.065

.070

–

–

1xxx-3011

.853

.123

.123

–

–

1xxx-3012

.865

.152

.120

–

–

1xxx-3013

.885

.155

.125

13/006

–

1xxx-3014

.885

.155

.123

–

WR62, WR67

1xxx-3015

.893

.069

.062

–

–

1xxx-3016

1.072

.094

.069

–

–

1xxx-3017

1.094

.097

.067

–

–

1xxx-3018

1.122

.099

.065

13/008

WR75

1xxx-3019

1.262

.113

.076

–

–

1xxx-3020

1.31

.115

.077

13/012

–

1xxx-3021

1.34

.095

.088

13/011

WR90

1xxx-3022

1.357

.093

.084

–

–

1xxx-3023

1.385

.174

.118

–

–

1xxx-3024

1.392

.095

.085

13/014

–

1xxx-3025

1.397

.095

.076

–

–

1xxx-3026

1.424

.103

.051

–

WR102

1xxx-3027

1.460

.097

.076

–

–

1xxx-3028

1.511

.103

.077

–

–

1xxx-3029

1.550

.105

.078

13/017

WR112

1xxx-3030

1.562

.096

.062

–

–

1xxx-3031

1.581

.097

.076

–

–

1xxx-3032

2.011

.139

.070

–

–

1xxx-3033

2.683

.115

.058

–

–

1xxx-3034

2.705

.093

.059

–

–

1xxx-3035

2.859

.138

.125

–

–

1xxx-3036

3.193

.095

.059

–

–

1xxx-3037

3.412

.180

.130

–

–

1xxx-3038

3.837

.234

.188

–

–

1xxx-3039

3.91

.24

.188

13/036

–

1xxx-3040

3.91

.240

.190

–

WR284

1xxx-3041

2.284

.098

.119

–

WR159

1xxx-3042

2.011

.139

.120

–

WR137

1xxx-3043

.420

.070

.065

–

PBR320, WR28

1xxx-3044

1.135

.080

.062

–

–

Postal Address

SAS Industries Inc. PO Box 68
Manorville, NY 11949

Physical Address

939 Wading River Manor Rd.
Manorville, NY 11949

Physical Address

100 Corporate Drive,
Elizabeth City, NC 27909

Call Us at

631.727.1441

Hours Of Operation

Office

Monday to Thrusday: 7:00 AM – 4:30 PM
Friday: 8:00 AM – 12:00 PM
Saturday & Sunday Closed

Factory

Monday to ThuRsday: 7:00 AM – 4:30 PM
Friday, Saturday & Sunday Closed
