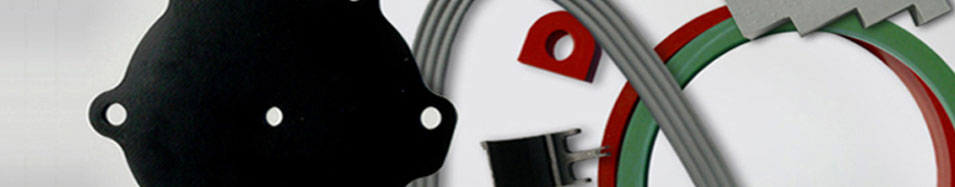

| Custom Gaskets |
|
|
|
Our capabilities include:
| • Die Cutting |
• Water Jet Cutting |
• Laser Cutting |
| • Compression Molding |
• Transfer Molding |
• Extruding |
| • Slitting |
• High Precision Cutting |
• Bonding/Vulcanizing |
We can also produce or acquire nearly all rubbers and most plastic and paper goods and convert them into your finished application, whether it be a complete part, one of our specialty EMI/RFI Shielding Materials, an inclusion of a special adhesive, liner or combination there of, a smaller roll width, or simply your desired roll/sheet stock at our discounted prices. Our unique capabilities enable us to cut just about anything from the softest of rubbers and papers to the thickest metals up to 8" thick titanium! Our large machinery and specialized cutting surfaces allow us to do this as seemless applications up to 6 feet x 12 feet rectangular footprints while still holding to the strictest of tolerances commonly required by the aerospace/defense fields that we service along the various other industries we service. We can of course do bonding as well to create even bigger parts and have full in house molding capabilities as well. Let us be your single source for all of your needs. We hope the following information can assist you in selecting the proper material for your product and of course we carry many materials not listed below and can cut from any material you request. |
|
| Neoprene/Nitrile/EPDM Gaskets |
|
|
SAS carries a wide variety of Solid Neoprene, Nitrile, and EPDM in both commercial and military specification grades with Durometers ranging from as low as 10A all the way up to 100A. We can supply these materials in any design you can come up with as a finished part or in roll or sheet stock, of course either format can be done with any PSA/Liner combination you can think of if necessary. Most commercial grade thicknesses and some raw uncured rubber is kept in stock allowing us to meet even the strictest of timelines. We also have many fabric inserted variants should you require them.
Along with our solid Neoprene, Nitrile, and EPDM materials we also carry a wide range of Closed Cell Foams, which is also in both commercial and military grades using various different types of Neoprene/Nitrile/EPDM blends to meet military standards at a significant cost reduction along with 100% Neoprene Base options.
| Please use the following links for some general performance characteristics and physical properties, along with our helpful advantage and disadvantage guide: |
| |
|
|
|
| |
| Neoprene Gaskets & Materials |
| Advantages: |
Very high resistance to O-Zone, Oil, and many common chemicals. |
| Disadvantages: |
Susceptible to esters, oxidizing acids, ketones, chlorinated, aromatic and nitro hydrocarbons. |
| Examples: |
Garden Hoses, Plumbing Fixtures, Water Resistant Covers & Boxes |
| |
|
| Nitrile (Buna-N, NBR) Gaskets & Materials |
| Advantages: |
Good resilience, tensile, and compression set. Very resistant to both mineral and vegetable oils. |
| Disadvantages: |
Susceptible to ozone, ketones, esters, aldehydes, chlorinated and nitro hydrocarbons. |
| Examples: |
Oil Wells, Automotive Hoses, O-Rings |
| |
|
| EPDM Gaskets & Materials |
| Advantages: |
Great for outdoor environments. Offers excellent resistance to both ozone, oxidants, and severe weather conditions. |
| Disadvantages: |
Bad electrical insulator, very low tensile strength and resilience. Susceptible to mineral oils, solvents, and aromatic hydrocarbons. |
| Examples: |
Weather Stripping, Automotive Painting Booths |
As with all of our materials these can be supplied in finished parts to your design, roll or sheet form, slit to width rolls, and extruded profiles all with any configuration of adhesives and/or liners you can think of. |
|
| Silicone/Fluorosilicone Gaskets |
|
|
We also carry a wide range of both Solid and Closed Cell Sponge Silicones and Fluorosilicones, commonly used in high temperature applications, meeting commercial grades and many military specifications. Our extensive knowledge and partnerships in the industry with companies such as Saint Gobain High Performance Materials (formerly CHR Silicones) enable us to provide you with both the rarest and highest quality silicones that many companies would have a hard time finding from our own stock enabling us to give you the rapid delivery you require. As with our other rubbers we can cut or mold almost any part you can design or provide us with a sample on.
| Please use the following links for some general performance characteristics and physical properties, along with our helpful advantage and disadvantage guide: |
| |
|
|
|
| |
| Silicone Gaskets & Materials |
| Advantages: |
Excellent Thermal Stability (consistent performance over -100 to +250 °C), Repels Water to form a Water Tight Seal, Excellent Resistance to Oxygen, Ozone, and Sunlight, Good Electrical Insulation, Low ChemicalReactivity, Low Toxicity, High Gas Permeability. |
| Disadvantages: |
High Relative Cost to other common rubbers such as Neoprene/EPDM/Nitrile |
| Examples: |
Cookware (heat insulating), Electronic Components, Firestops |
| |
|
| Fluorosilicone Gaskets & Materials |
| Advantages: |
All The Advantages of Silicone, Added Resistance to Certain Jet Fuels |
| Disadvantages: |
Higher Relative Cost Than Silicone |
| Examples: |
Fuel Bladder Covers, Aerospace Applications |
As with all of our materials these can be supplied in finished parts to your design, roll or sheet form, slit to width rolls, and extruded profiles all with any configuration of adhesives and/or liners you can think of.
Of course we specialize in conductive silicone formats which can be found in our EMI Shielding section. |
|
| Viton™ (Fluorocarbon) Gaskets |
|
|
An excellent choice when your application requires the strictest of chemical resistances and high temperature sustainability. Please contact us with your requirements and we will tell you if Viton™ is a good fit. We stock a wide range of Viton™ Polymers and sheet thicknesses to many different military and commercial specifications. We can both mold and cut from this material. We also have many cloth inserted variants should your application require one.
| Please use the following links for some general performance characteristics and physical properties, along with our helpful advantage and disadvantage guide: |
| |
|
|
|
| |
| Viton™ Gaskets & Materials |
| Advantages: |
Sustained Performance in Aggressive Chemical Environements |
| Disadvantages: |
High Relative Cost to base rubbers such as Neoprene/EPDM/Nitrile |
| Examples: |
Oil Exploration, Chemical Process Plants, Oxygenated Automotive Fuels, Aerospace Fuels & Lubricants |
As with all of our materials these can be supplied in finished parts to your design, roll or sheet form, slit to width rolls, and extruded profiles all with any configuration of adhesives and/or liners you can think of. |
|
| Large / Oversized Gaskets |
|
|
| Frequently, your applications may require a need for an above average sized gasket that you may be having a hard time finding someone to manufacture. We pride ourselves on our ability to manufacture to any size using our knowledge and experience. Our customers, frequently, come to us for oversized gaskets in any shapes and sizes, most typically in the oversized area, large "washer style" gaskets or ID/OD Rectangles typically referred to as "window frame" gaskets. Whether you deem your design large, very large, or even "too large" we will gladly manufacture it for you. |
|
| High Precision Gaskets |
|
|
| When necessary we have the unique capabilities of holding to even the tightest of tolerances, within a micrometer. When your gasket designs must be perfect please contact us and we will manufacture with that in mind. These special gaskets are typically used by aerospace manufacturers where the gaskets must be true to design and there is no room for error. Keep in mind when requesting this option tooling will be substantially more expensive. |
|

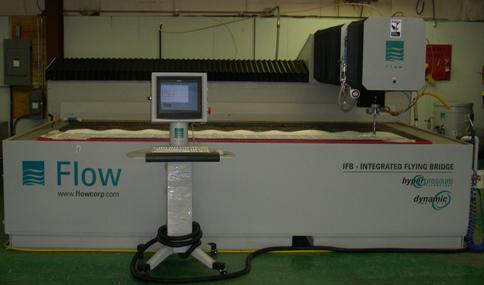

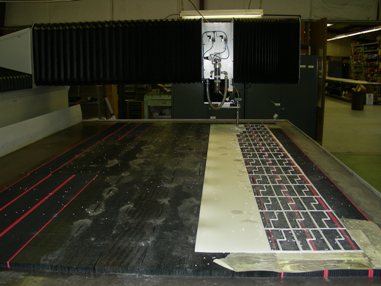

| Water Jet Cut Gaskets |
|
|

Our Water Jet Machines can cut everything from common rubbers and plastics to the hardest of steels including 4" titanium. The advantages of Water Jet cut parts are that they involve no tooling which allows for quick deliveries and no tooling charges. They also enable extremely precise parts to your specifications. Our water jet machines (one such is pictured above) hold industry leading tolerances of +/- .003" with repeatability to +/- .002". The particular machine pictured above also represents one of the largest cutting surfaces available (6 ft x 12 ft). This enables us to provide seemless parts with no bonded joints in any size that fits within that rectangle area.
Other benefits to Water Jet Cut Gaskets are with thick rubbers in both solid and sponges where the typical method of manufacture, die cutting, would cause for severe concavities, die cutting provides a seemless wall similar to if the part had been molded, though not quite as smooth. If you are having a hard time with any of your designs or ideas and are not sure if it is best to Die Cut, Mold, or Water Jet cut the part call us and we will decide for you and provide you with exactly what you desire. |
|
| Plastic / Paper Gaskets |
|
|
| SAS fabricates from a wide variety of Plastic and Paper materials. Please contact our friendly sales staff for more information. |
|
| Thermally Conductive Gaskets & Materials |
|
|
SAS fabricates from an endless range of Thermally Conductive Materials. We have access to all of 3M™, Saint Gobain™ and Bergquist™ Thermal Pads. We also have access to many other Thermal Pad materials. We can manufacture from any of these materials or through our knowledge and partnerships possibly offer you a lower price on your current product or offer a cheaper/equal or better performing alternative. Thermally Conductive Materials are Sil Pads, Gap Pads, and many other custom products. For your conveniece we have included a list of 3M™ Thermally Conductive Interface Pads.
| 3M™ Thermally Conductive Interface Pads |
Prod- uct |
Product Description |
Thermal Performance |
Dielectric Properties
|
UL Flamm- ability Rating |
Continuous Operating Temperature Range (°C) |
Base Material Type |
Product Thick- ness (mm) |
Filler Type |
Liner Type |
Conduct- ivity (W/m-K) |
Impedance |
Dielectric Strength (KV/mm) |
Dielectric Constant (1KHz) |
Volume Resistivity (ohm/cm) |
Thickness |
°C-in2/W |
°C-cm2/W |
mil |
mm |
5506 |
Filled silicone elastomer; Gray |
0.5 / 1.0 / 1.5 / 2.0 |
Ceramic |
Poly- coated polyester |
2.3 |
20 |
0.5 |
0.49 |
3.2 |
0.12 |
18.6 |
1.15 x 10^11 |
UL 94 V-1 |
100-150 depending on the application |
40 |
1 |
0.71 |
4.6 |
60 |
1.5 |
0.94 |
6.1 |
80 |
2 |
1.1 |
7.1 |
100 |
2.5 |
1.29 |
8.3 |
5506S |
Same properties as 5506 except with a thin permanent polyester film carrier
|
5509 |
Filled silicone elastomer; Gray |
0.5 / 1.0 / 1.5 / 2.0 |
Ceramic |
Poly- coated polyester |
5.0 |
20 |
0.5 |
0.41 |
2.6 |
0.07
|
11.7 |
1.28 x 10^11 |
UL 94 V-0 |
40 |
1 |
0.63 |
4.1 |
60 |
1.5 |
0.84 |
5.4 |
80 |
2 |
0.96 |
6.2 |
100 |
2.5 |
1.13 |
7.3 |
5509S |
Same properties as 5509 except with a thin permanent polyester film carrier |
|
|
| Poron™ / Open Cell Sponge Gaskets |
|
|
Poron™ Microcellular Urethane Foams offer a lot of advantages for customers looking for Open Cell gaskets. Poron™ materials are flexible, high density, microcellular products that offer excellent resistance to compression set, exhibit high resilience, good vibration dampening and impact absorption. Perhaps most importantly Poron™ products are very resilient offering sustained performance after continued use.
SAS has the capability to cut any gasket out of any style of Poron™.
SAS also manufactures out of some Open Cell Sponge. Open Cell Sponges are used for their excellent compression set characteristics.
| Poron™ Gaskets & Materials |
| Advantages: |
Excellent Compression Set Offering Long Term Performance, Low Outgassing and Non-Fogging, Non-Corrosive to Metal, Excellent Perfomance from -40 to +90 °C, Good Chemical Resistance |
| Disadvantages: |
Poor Fuel Resistance |
| Examples: |
Abrasion Resistance Applications, Enclosing Electrical Components. |
| |
|
| Open Cell Sponge Gaskets & Materials |
| Advantages: |
Excellent Compression Set Characteristics |
| Disadvantages: |
Poor Water Resistance |
| Examples: |
Cushions, Mattresses |
As with all of our materials these can be supplied in finished parts to your design, roll or sheet form, slit to width rolls, and extruded profiles all with any configuration of adhesives and/or liners you can think of. |
|
| EMI/RFI Shielding Gaskets & Materials |
|
|
| SAS carries and manufactures a wide range of conductive silicones and knitted wire mesh material. These products can be molded or cut to your designs as well as being sold in sheet stock. For more information on this material please visit our EMI Shielding section. |
|
| 3M™ Adhesives and Tapes |
|
As a 3M™ Approved Converter we have the capability to manufacture any design, slit rolls, or full roll width using pure 3M™ products independently or in addition to our own line of EMI/RFI Shielding Products along with additions to any other products you may think of. Though there is too much to list for this area and we are currently designing a seperate section strictly for 3M™'s over 4,000 products, we have made a list of just some of there product areas. We have also included a chart listing 3M™'s most commonly used Conductive Adhesive Tapes that, at your request, can be paired with our EMI Shielding product so that you can get the absolute best conductivity rating for your final product. Please contact us for absolutely any 3M™ product you may require or if you would like more information.
| 3M™ Electrically and Thermally Conductive Tapes |
Adhesive Family |
Product |
Description/Application Ideas |
Specs |
Adhesion |
Chem. Resist. |
Temp. Range |
Metal |
Plastic |
Foam |
Low °F |
High °F |
HSE |
LSE |
Electrically Conductive |
|
Z-axis only electrically conductive for interconnects |
|
5
|
4
|
4
|
N/A
|
6
|
20
|
160
|
|
XYZ-axis conductive adhesive for EMI shielding (medium performance) |
|
XYZ-axis conductive adhesive EMI shielding (high performance). |
|
XYZ-axis conductive adhesive for EMI shielding (silicone adhesive). |
4 |
7 |
7 |
N/A |
7 |
20 |
160 |
Thermally Conductive |
|
Improved ceramic filled adhesive transfer tape. |
|
8
|
6
|
4
|
N/A
|
6
|
20
|
185
|
|
10 mil version of 8805. |
|
15 mil version of 8805. |
|
20 mil version of 8805. |
|
Ceramic filled adhesive transfer tape. |
UL |
4
|
4
|
2
|
N/A
|
6
|
20
|
185
|
|
5 mil version of 9882. |
UL |
|
10 mil version of 9882. |
UL |
| *Please click the 3M Part number for a data sheet on the product. |
| |
3M™Adhesive Transfer Tapes |
3M™ Double Linered Adhesive Transfer Tapes |
3M™ Double Coated Tapes |
3M™Differential / Removable / Repositionable Tapes |
3M™ Membrane Switch Spacers |
3M™ Screen Printable Adhesives |
3M™ VHB™ Tapes |
3M™ Double Coated Foam Tapes |
3M™ Structural Bonding Tapes |
3M™Thermo-Bond Films |
3M™ Electrically and Thermally Conductive Tapes and Pads |
3M™ Film and Foil |
3M™ Pharmaceutical and Performance Papers |
3M™ Removable Label Materials |
3M™ Tamper Indicating Label Materials |
3M™ Tire Tread Label Materials |
3M™ HP Indigo Optimized Label Materials |
3M™ Sheet Label Materials |
3M™ Overlaminating Film Materials |
3M™ Radiant Light Films |
3M™ RFID Materials |
3M™ Commercial Graphics Products |
3M™ Release Liners |
3M™ Printable Films |
3M™ Singel Coated Tapes |
3M™ Single Coated Foam Tapes |
3M™ Repulpable Tapes |
3M™ Protective Tape Products |
3M™ EMI Shielding and Electrical Tapes |
3M™ Reclosable Fasteners |
3M™ Bumpon™ Protective Products |
3M™ Viscoelastic Damping Polymers |
3M™ Flexographic Mounting Systems |
|
|
| Conversion Tools & Information |
|
|
Of course our capabilities do not end with just these products. We have the capability to cut or mold from nearly all rubber based materials as well as some plastic, cork, and paper based materials. We also offer color matching services for ease of assembly and differentiating between different products and material types you have. Please contact us with the strictest of requirements. Below we have included some helpful tools and links to assist you in your material selection. As always feel free to contact us directly if you have any questions.
